10. Chair in Platform
>>Top
The lightness was expressed by adopting curved thin steel plates as material of chairs, preserving the atmosphere produced by curved surface of plank sheets. The height of the seat surface and the curvature of the back surface necessary for comfortable chair were investigated by producing full-scale mock-up made by cardboards and sitting on it in actual. The seat surface was designed to be deep and the waist part was designed to be convex so that the back surface of the chair does not press the stomach in contact with the entire back of the people. Steel plate of 2.3mm thickness was used for the supports and veneering decorative plywood was used for the seat surface.

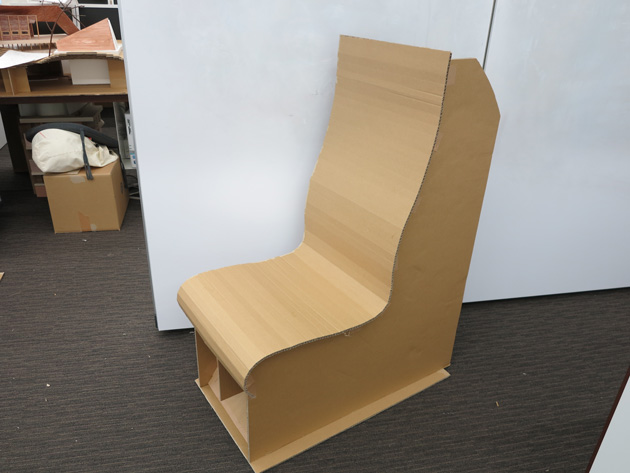

ダンボールによるプラットフォーム椅子の原寸模型
Mock-up of chair in platform made by cardboards

原寸模型による椅子の形状の検討

Consideration on the shape of a chair by full-scale mock-up

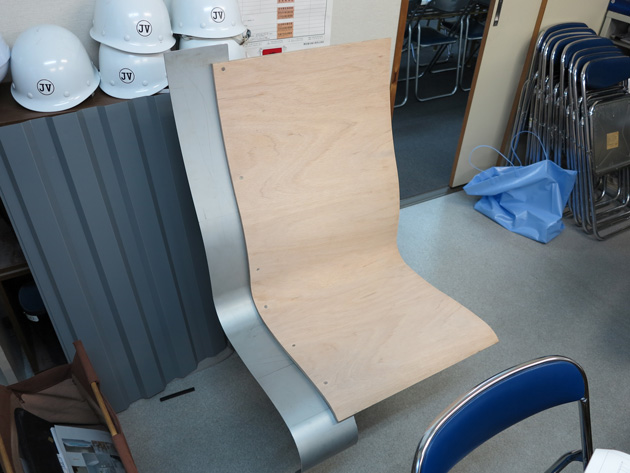

原寸模型にもとづいて製作されたモックアップ
Mock-up produced based on cardboard mock-up

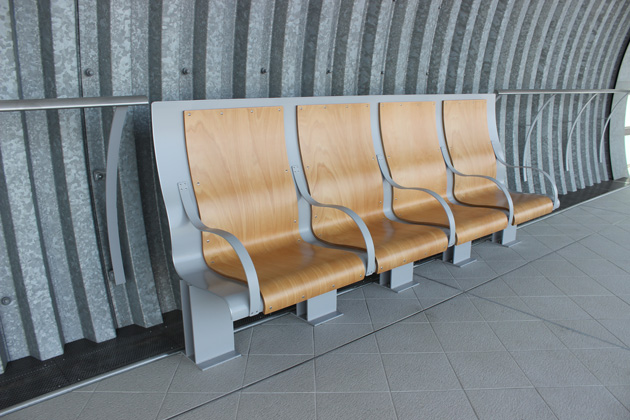

曲面加工した鉄板によるホーム椅子
Chair in platform by curved steel plates

Hanshin Electric Railway Co., Ltd.

Architectural Design Studio in Mukogawa Women’s University

 Shigeyuki OKAZAKI: Professor Emeritus, Kyoto University,
  Professor, Head, Department of Architecture, Mukogawa Women's University

 Mamoru KAWAGUCHI: Professor Emeritus, Hosei University,
  President, KAWAGUCHI & ENGINEERS,
  Visiting Professor, Mukogawa Women's University

 Department of Architecture, Mukogawa Women’s University, Japan
  Noritoshi SUGIURA
  Keisuke INOMATA
  Junko MORIMOTO
  Aya YAMAGUCHI
