11. Construction
>>Top
Hot-dip galvanizing, phosphate-treated plank sheets were used for outer walls and roofs. Plank sheets with 7.5m length and 0.57m width were attached to the roof on the rail side and to the floor on the platform side. Curved plank sheets were connected with high strength bolts at intervals of 500mm in both vertical and horizontal directions and function as structural element to transmit in-plane shear force.

プランクシートのモックアップ

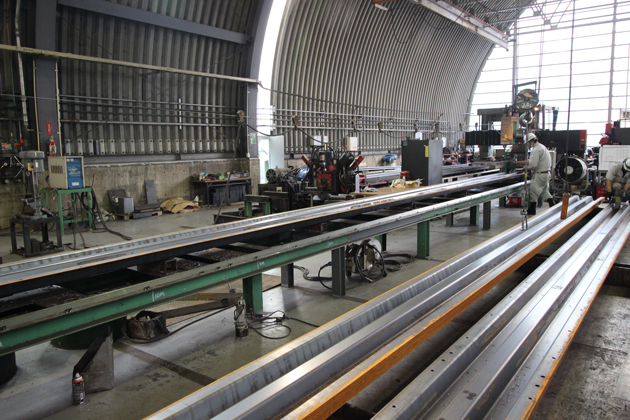

Punching of plank sheets

プランクシートのモックアップ

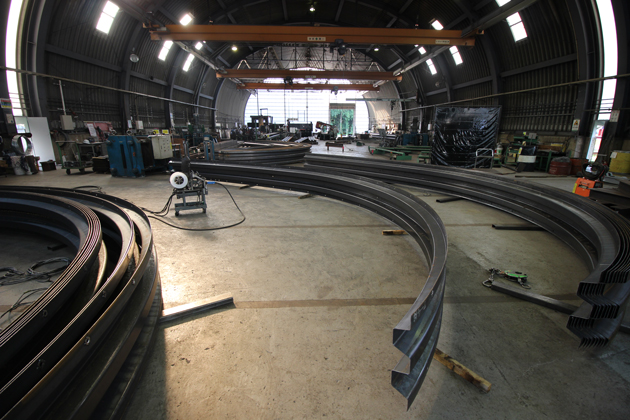

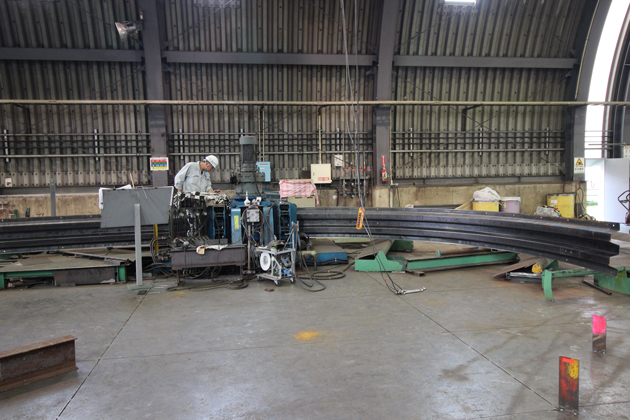

Curving of plank sheets

プランクシートのモックアップ

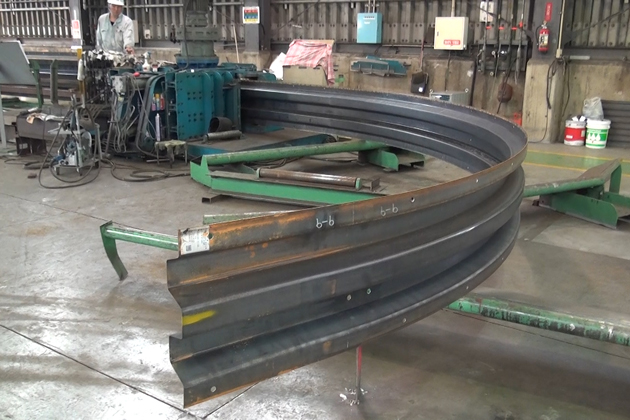

Curving of plank sheets

プランクシートのモックアップ
Curved plank sheets

プランクシートのモックアップ

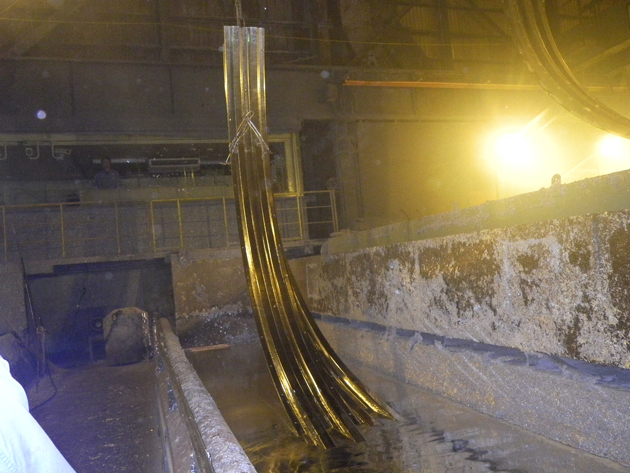

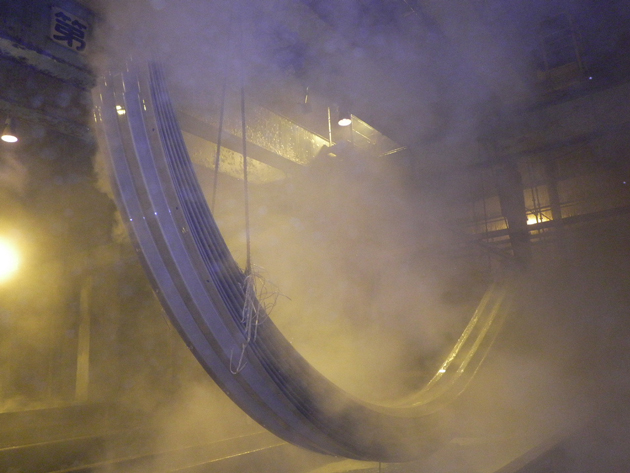

Hot-dip galvanizing of plank sheets

プランクシートのモックアップ

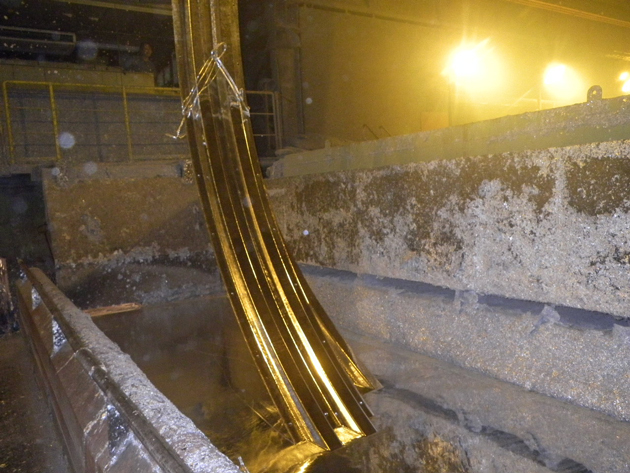

Hot-dip galvanizing of plank sheets

プランクシートのモックアップ
Hot-dip galvanizing of plank sheets

プランクシートのモックアップ

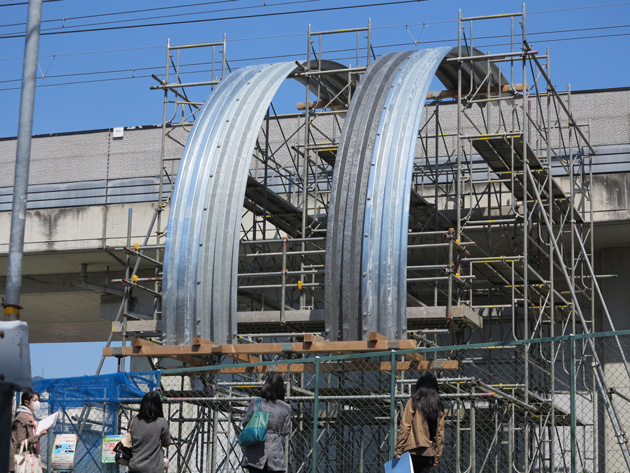

Mock-up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

Set up of plank sheets

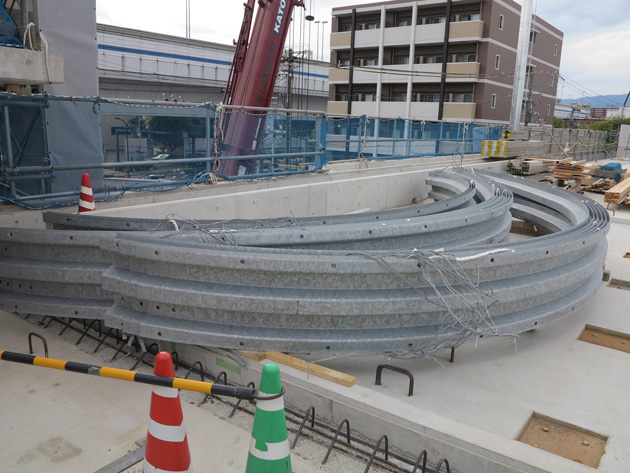

現場に仮置されたプランクシート

Plank sheet temporarily placed at the construction site

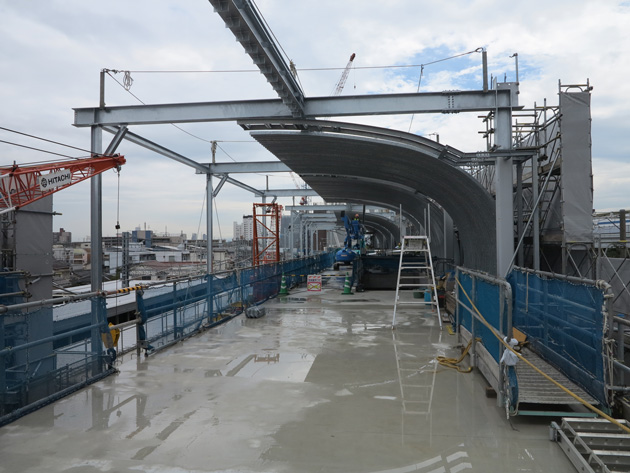

プランクシート取付前の鉄骨架構
Steel frame before setting up plank sheets

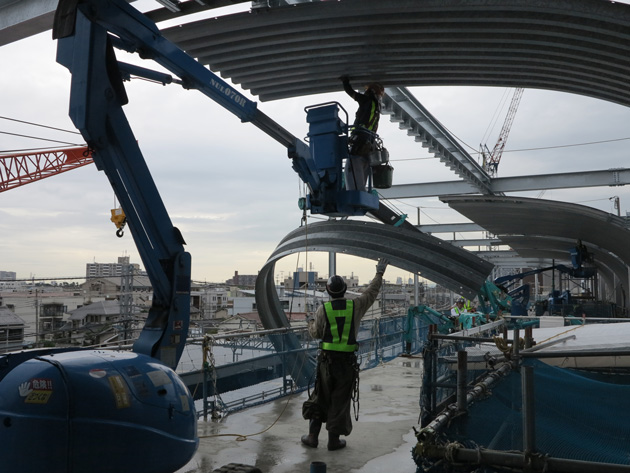

プランクシート取付の様子
Set up of plank sheets

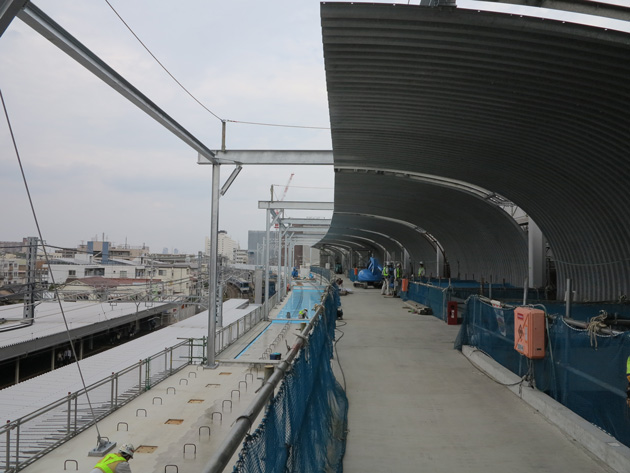

プラットフォーム東方向を見る
View in east direction from platform

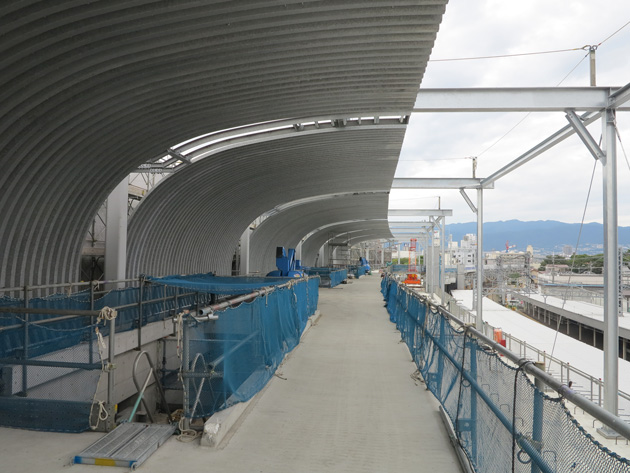

プラットフォーム西方向を見る
View in west direction from platform

Hanshin Electric Railway Co., Ltd.

Architectural Design Studio in Mukogawa Women’s University

　Shigeyuki OKAZAKI: Professor Emeritus, Kyoto University,
　　Professor, Head, Department of Architecture, Mukogawa Women's University

　Mamoru KAWAGUCHI: Professor Emeritus, Hosei University,
　　President, KAWAGUCHI & ENGINEERS,
　　Visiting Professor, Mukogawa Women's University

　Department of Architecture, Mukogawa Women’s University, Japan
　　Noritoshi SUGIURA
　　Keisuke INOMATA
　　Junko MORIMOTO
　　Aya YAMAGUCHI
